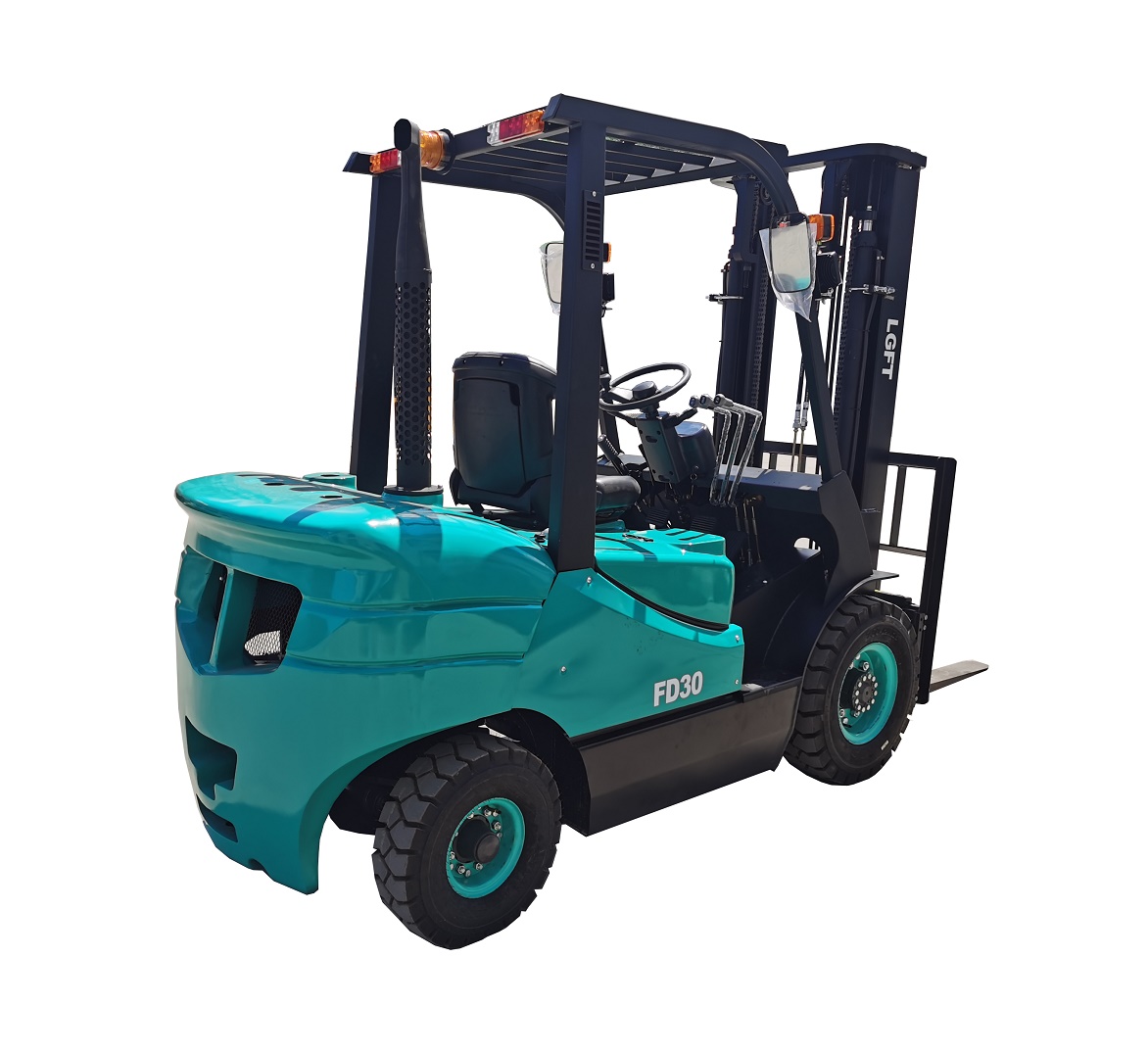

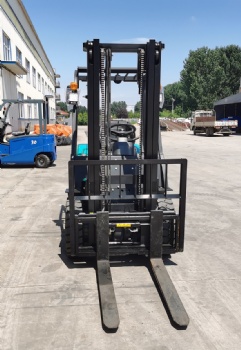

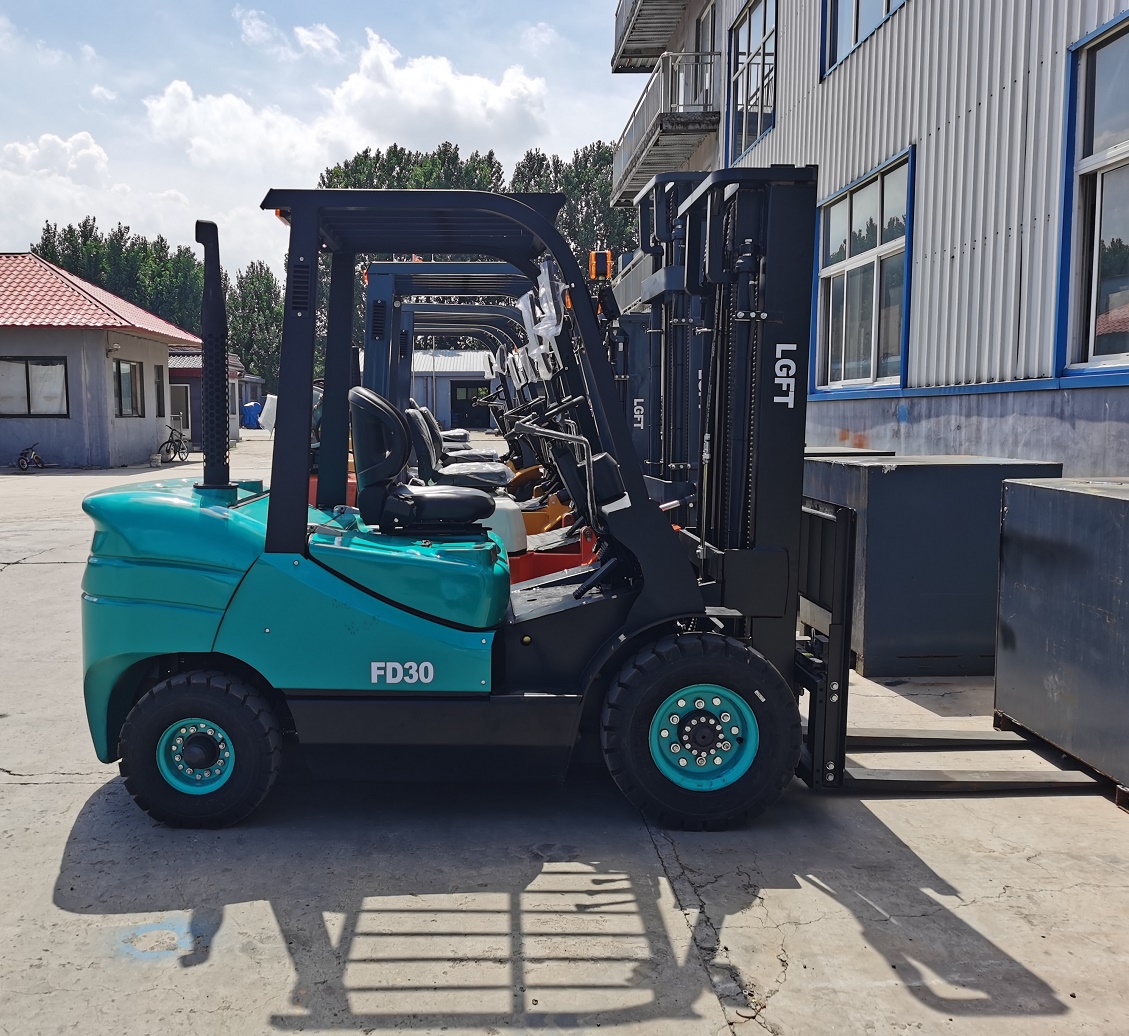

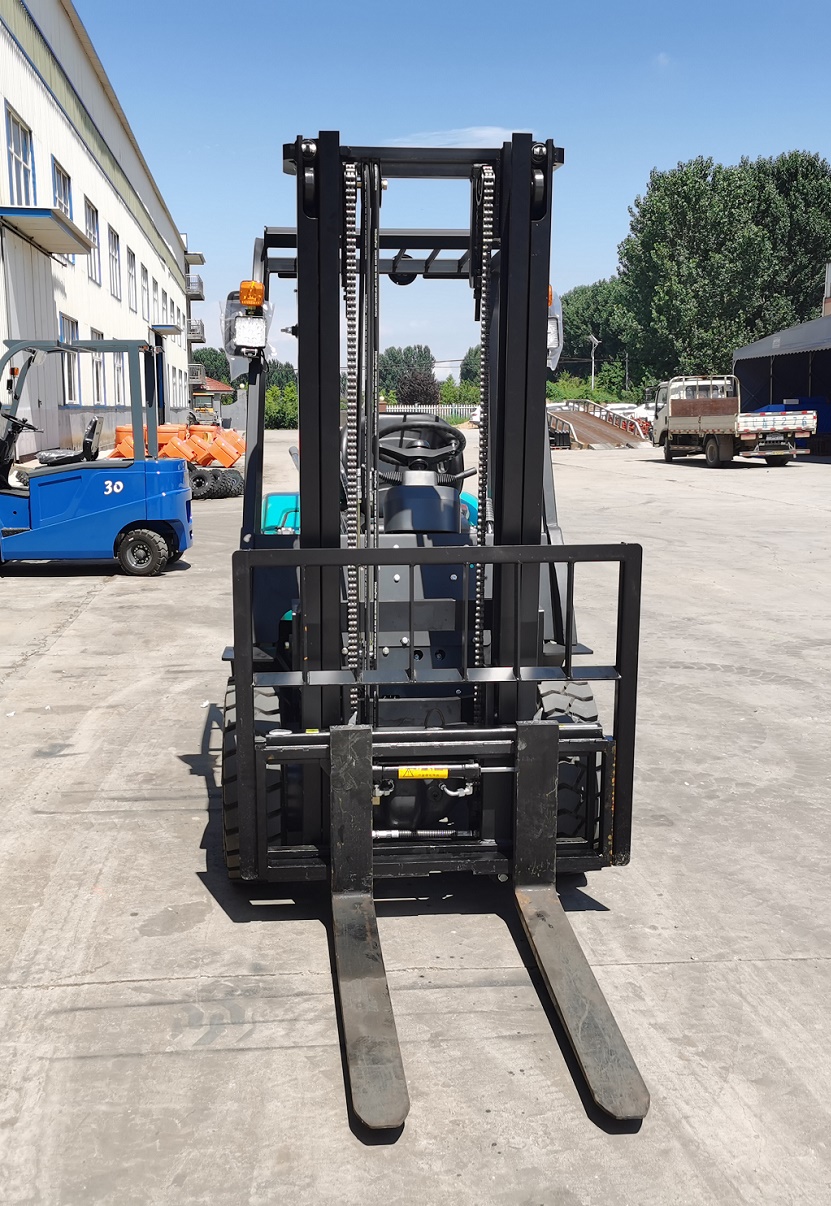

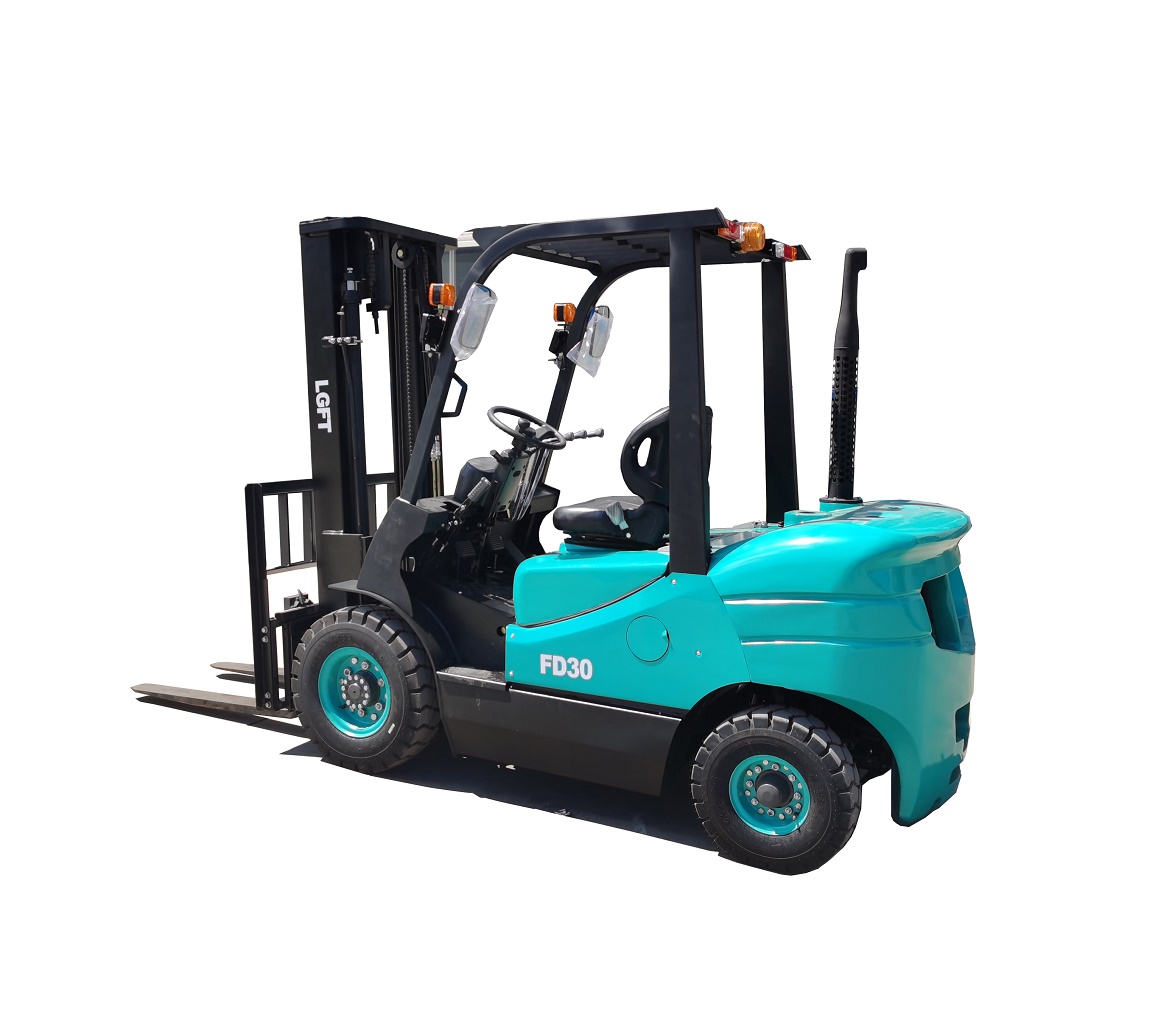

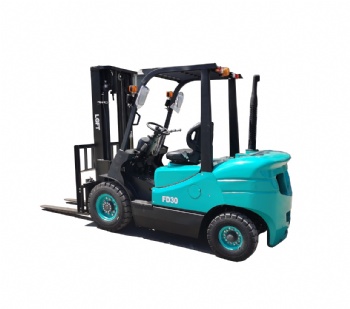

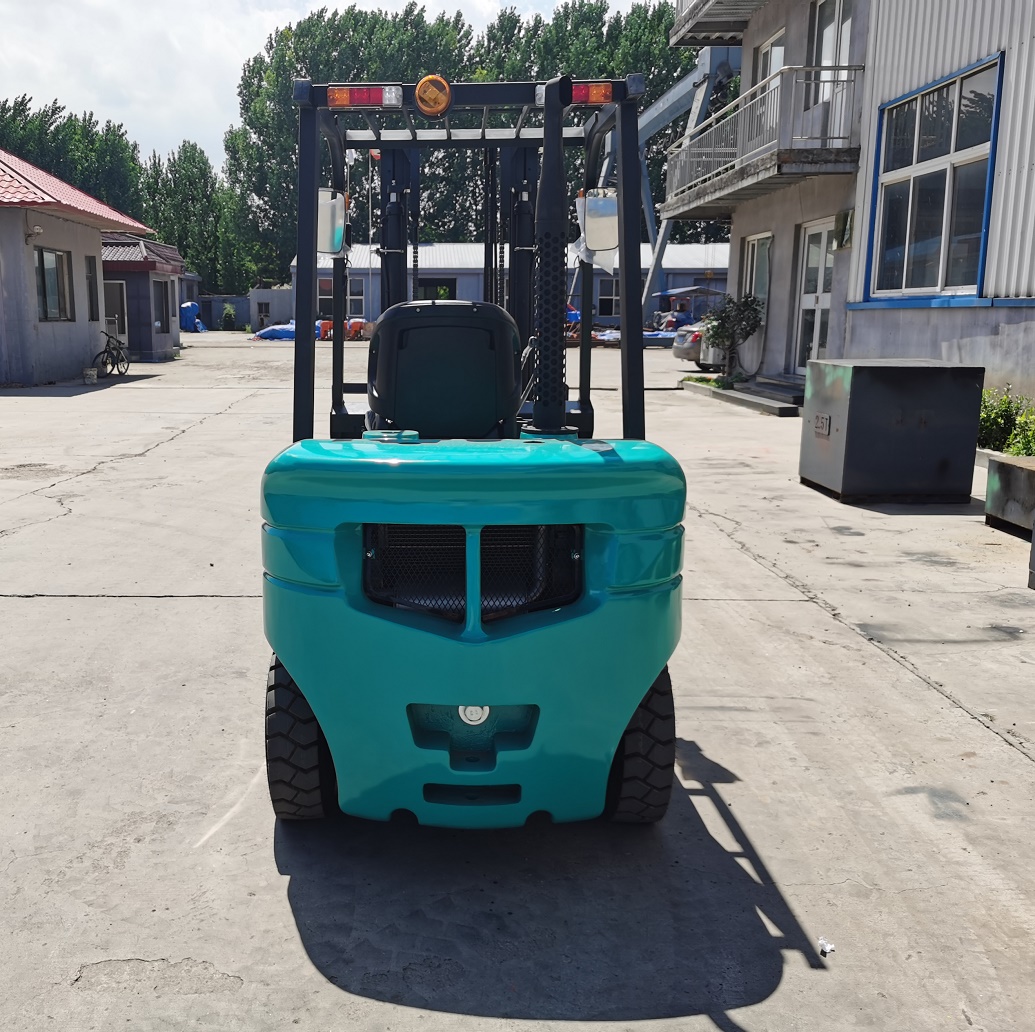

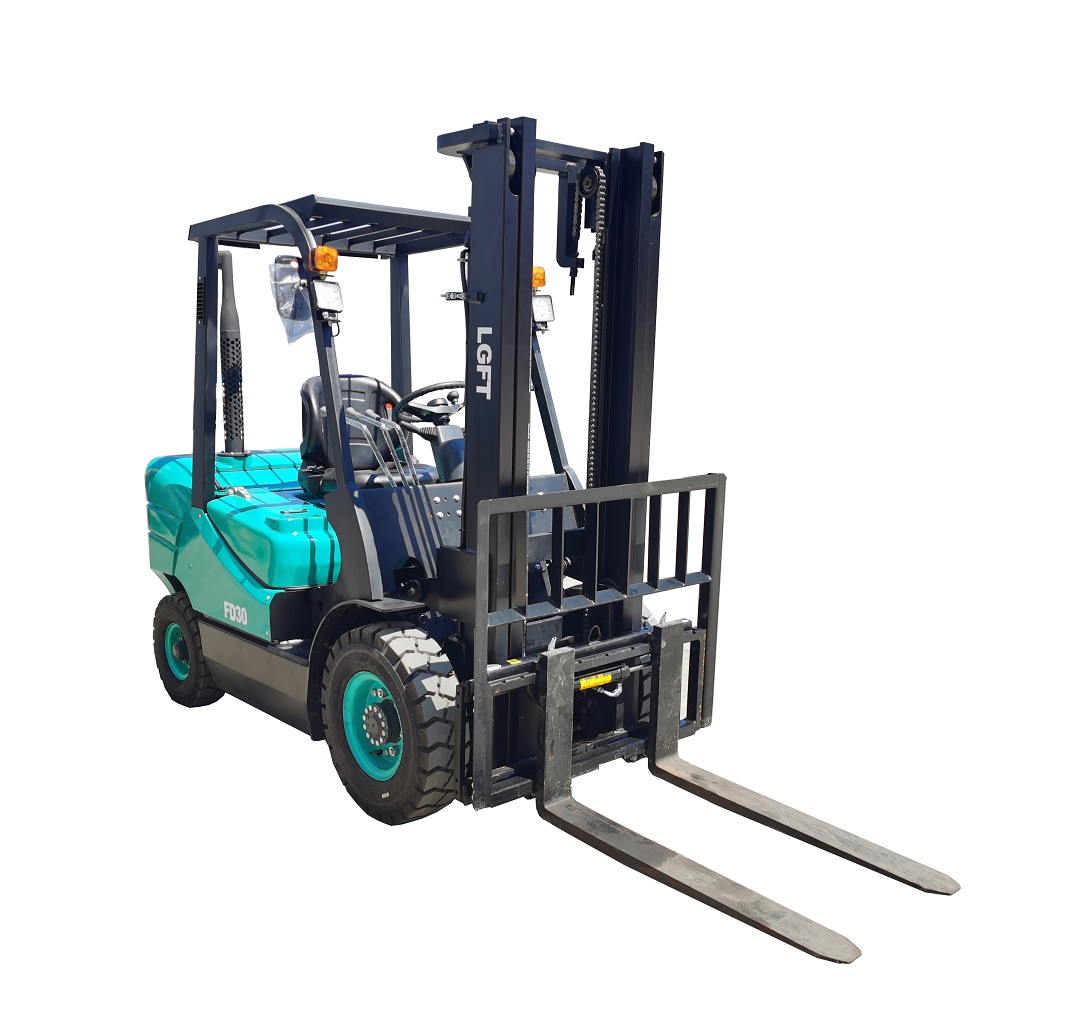

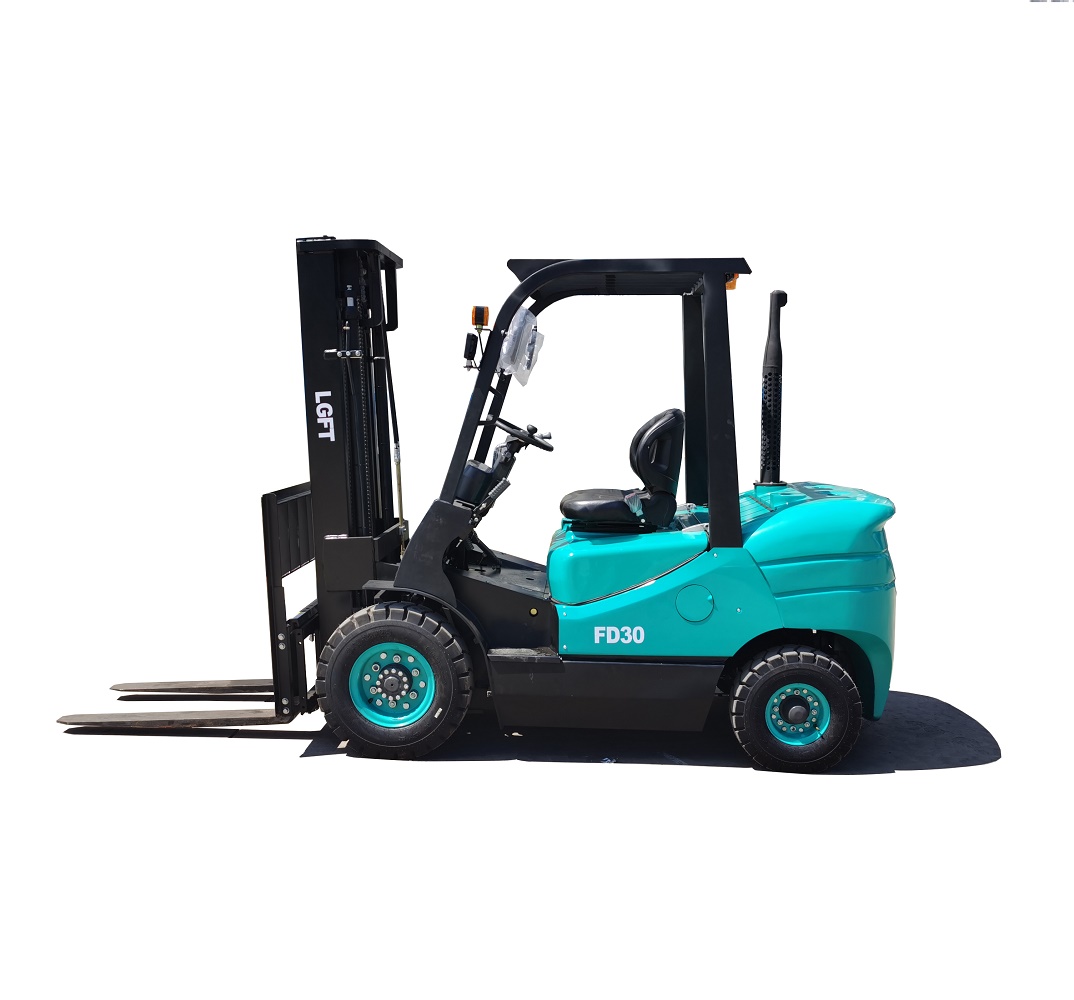

new design diesel forklift 3 tons

new model diesel, lpg forklift from 2t to 4tons
EMAIL INQUIRY

new model/design 2t~ 4t diesel, LPG forklift with wide view mast, can offer different engine, Euro 5 stage, EPA approved, side shifter, fork positioner, solid tire, full closed glass cabin, heater, air conditioner, longer fork, forklift attachment.... all your needs about materail handling will be meet here. welcome contact us.

Overview	1	Model				FD30C	FD35C	FD40C
	2	Type				Diesel	Diesel	Diesel
	3	Rated capacity			Kg	3000	3500	4000
	4	Load center			mm	500	500	500
Overall size	5	Lifting height			mm	3000	3000	3000
	6	Free lifting height			mm	165	170	170
	7	Fork size		L×W×T	mm	1070×122×45	1070×122×50	1070×150×50
	8	Fork adjust range		Min./Max.	mm	250/1100	260/1100	300/1100
	9	Titling angle		F/R	Deg	6°/12°	6°/12°	6°/12°
	10	Front overhang			mm	490	510	510
	11	Rear overhang			mm	518	580	535
	12	Min.ground clearance (Mast bottom)			mm	140	140	150
	13	Overall size		Length（without forks)	mm	2680	2755	2915
	14			Width	mm	1210	1210	1410
	15			Mast folded height	mm	2075	2150	2260
	16			Mast extend height（with backrest）	mm	4140	4140	4140
	17			Overhead guard height	mm	2170	2170	2180
	18	Width of right angle stacking channel			mm	4140	4220	4425
	18	（1000长×1200 pallet）			mm	4140	4220	4425
	19	Width of right angle stacking channel			mm	4340	4420	4625
	19	（1200长×800 pallet）			mm	4340	4420	4625
	20	Min. turning radius			mm	2450	2510	2715
Performance	21	Speed		Drive（unload）	Km/h	19	18.5	20
	22			Lifting up（full load）	mm/sec	450	360	380
	23			Decline（full load）	mm/sec	430	430	425
	24	Max. traction force			kN	16.5	16.5	14.5
	25	Max.climbing gradient (full load)			％	20	15	18
Tire	26	Tire		Front	mm	28×9-15-14 PR	28×9-15-14 PR	250-15-16 PR
	27			Rear	mm	6.50-10-10 PR	6.50-10-10 PR	6.50-10-10 PR
	28	tread		Front	mm	1000	1000	1154
	29			Rear	mm	980	980	980
	30	Wheelbase			mm	1700	1700	1900
Weight	31	Self weight			kg	4280	4680	5050
	32	Bridge load	Full load	Front	kg	6460	7240	8240
	33			Rear	kg	820	940	810
	34		unload	Front	kg	1720	1660	2120
	35			Rear	kg	2560	3020	2930
Power and Transmission	36	Battery	Voltage/Capacity		V/Ah	12/80	12/80	12/80
	37	Gearbox	Type			Hydraulic
	38		F/R			/2/1
	39	Work pressure			Mpa	17.5
